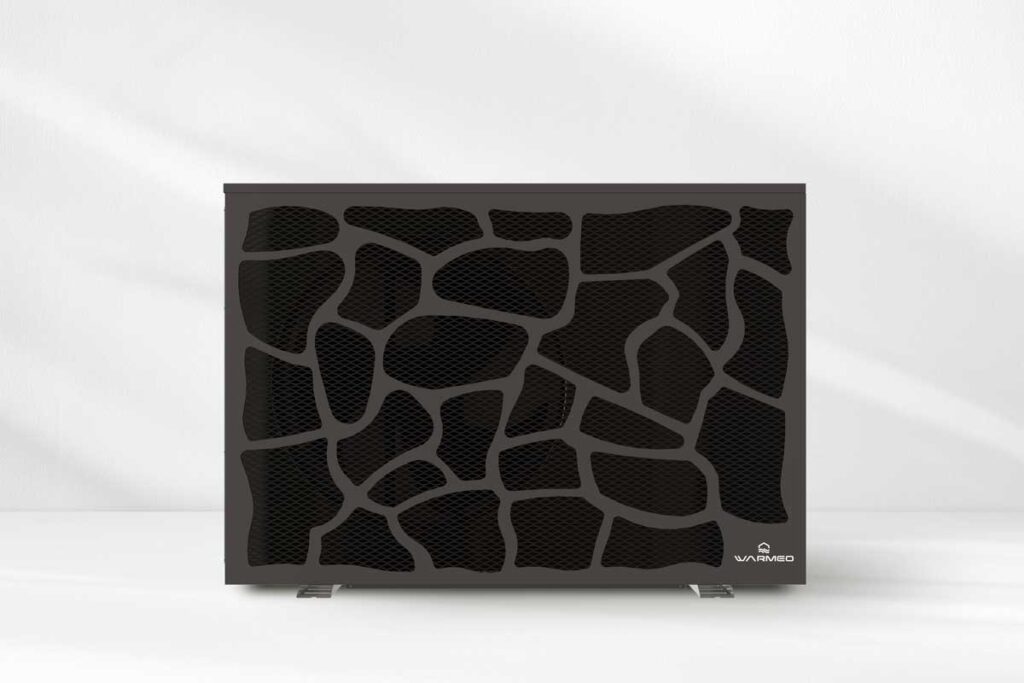

High-temperature air-to-water heat pump WAO
High-temperature air-to-water heat pump WAO
A heat pump for heating, cooling, and hot water production
The WAO is a reversible high-temperature air-to-water heat pump designed to meet all the thermal needs of a home: heating in winter, cooling in summer, and domestic hot water production.
Particularly suited for energy renovation projects, it can in many cases replace a gas or oil boiler while retaining existing radiators.
Thanks to its ability to deliver leaving water temperatures up to 70°C and operate down to -25°C, the WAO provides reliable thermal comfort, even in regions with harsh winters.
A high-temperature heat pump designed for renovation projects
Why choose the WAO heat pump for your project?
The WAO combines high performance, ease of use, and simple integration into existing homes.
It stands out in particular for:
- Leaving water temperature up to 70°C
- Reliable operation in outdoor temperatures down to -25°C
- Compatibility with a wide range of existing radiators
- Heating, cooling, and domestic hot water with a single system
- Use of the natural refrigerant R290
- Monobloc design for easy installation
- Quiet operation and intelligent control
A low-impact R290 heat pump
The WAO operates with R290, a natural refrigerant known for its very low environmental impact.
R290 stands out in particular for:
- A very low global warming potential (GWP)
- Compliance with evolving regulations
- Excellent energy performance, including in winter
Reliable performance, even in extreme cold conditions
The WAO heat pump operates down to -25°C outdoor temperature to ensure stable thermal comfort even under demanding winter conditions.
It incorporates several features to ensure continuous operation:
- Defrost by reverse cycle
- Refrigerant compressor preheating
- Condensate tray heater
A monobloc design for easier installation
The WAO features a monobloc design, making installation and integration of the heat pump into renovation projects easier.
Integrated components:
- Circulation pump
- Electric backup heaters
- Safety features
Optimized performance for everyday comfort
The WAO combines energy performance, low noise operation, and intelligent control to deliver stable comfort on a daily basis.
Full Inverter
2D" Full DC Twin-Rotary Inverter compressor and variable speed fan
Soft start
No current peaks on the electrical network on start-up
25 - 100%
Speed variation
Smart Defrost
The machine adapts its defrosting according to its last cycle
Fonctionnement silencieux
Thanks to its Inverter compressor and variable-speed fan motor
-25°C
Minimum operating temperature
2 regulation modes available
- Constant temperature
- Water law according to outdoor temperature

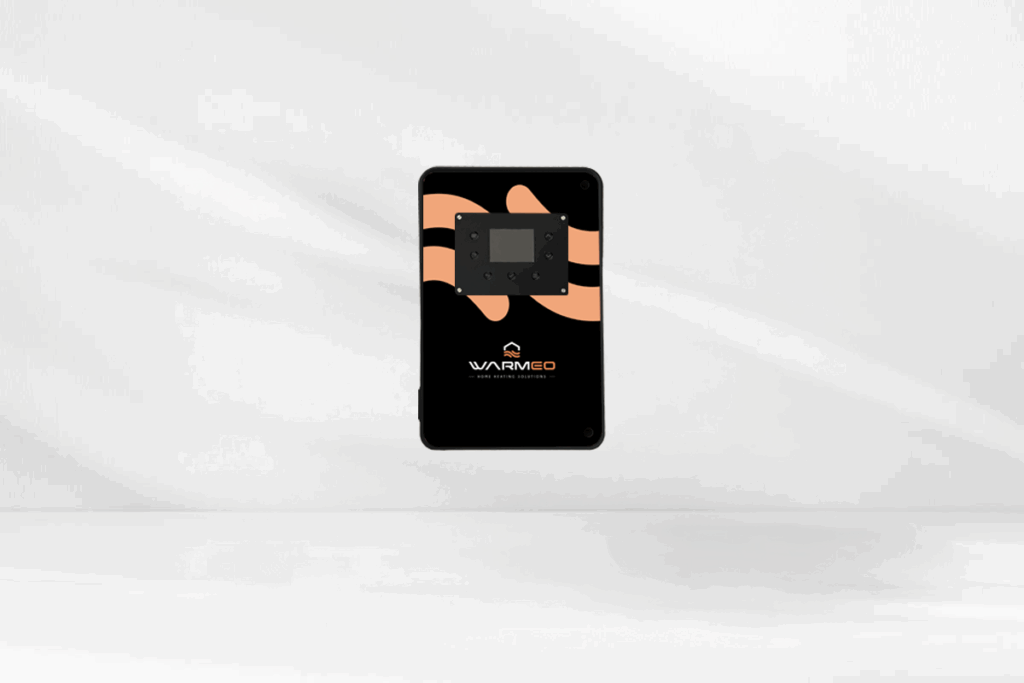

RLB 100
- LCD screen
- Managing different operating modes
- Setting the water temperature
- Selecting the heating curve
- Weekly programming
- Made in France
6 functions
- Heating
- Cooling
- Domestic hot water (DHW)
- Heating + DHW
- Cooling + DHW
-
Heating +
Cooling + DHW
- Anti-legionella mode (DHW)
- Daily, weekly and holiday programming
6 functions
- Wilo or Grundos circulation pump
- Plate heat exchanger
- Vortex flowmeter/"Calorimeter"
- Electric booster heater and safety
Optional
- Second zone management
- Boiler backup management
- Remote DHW management from 150 to 500 litres
- Additional backup heater
- Thermostat radio OperTherm
Planning a residential heat pump project?
FAQ : pompe à chaleur résidentielle WAO
An air-to-water heat pump is a heating system that extracts heat from the outside air and transfers it inside a house or building for heating and, in some cases, for producing domestic hot water. It works on the principle of thermodynamics, using a compressor and a refrigerant to transfer heat from one place to another. Economical and environmentally friendly, it reduces dependence on fossil fuels.
The system uses a thermodynamic cycle that captures the calories in the outside air to heat your home. The heat circulates inside the home via the water circuit and is distributed using emitters such as radiators, underfloor heating or any other distribution system.
Yes, WARMEO air-to-water heat pumps can cool a home. This is achieved by reversing the usual thermodynamic cycle, allowing the heat pump to extract heat from inside the house and transfer it outside, cooling the air inside. A suitable heat distribution system, such as underfloor heating/cooling, water ducts or a convector fan, is essential for the air conditioning system to work properly.
Installing a heat pump helps to reduce energy consumption, which means lower electricity bills. Other advantages include low environmental impact, multi-purpose use (heating and, in some cases, cooling), and eligibility for certain types of financial assistance.
The main difference lies in the way the heat is distributed. An air-to-water heat pump transfers heat to a water circuit, which can then be used to heat water for radiators or underfloor heating, whereas an air-to-air heat pump diffuses heat directly into the air in the home via indoor units.
Domestic hot water (DHW) systems combined with an air-to-water heat pump work efficiently by using the heat extracted from the outside air to heat the water. This hot water is then stored in an insulated tank and can be distributed to various domestic points of use such as taps, showers and domestic appliances. Air-to-water heat pumps harness the thermal energy of the outside air to provide an environmentally-friendly and cost-effective solution for producing domestic hot water.
Having your heat pump serviced by a professional is of vital importance, and has even become a legal requirement under the decree of 24 July 2020 and the decree of 29 July 2020. These regulations make biennial servicing compulsory for thermodynamic systems with a rated output of between 4 kW and 70 kW. Maintenance ensures optimal operation and extends the appliance's lifespan.
Most houses can accommodate an air-to-water heat pump, but the efficiency of the system depends on the quality of the house's insulation, the existing heating system and the surface area to be heated. For optimum installation, we recommend good access to outside air, adequate space for installation of the outdoor unit, a suitable heat distribution system (such as radiators or underfloor heating), and effective insulation of the house to maximise the efficiency of the heat pump system.
The installation of an air-to-water heat pump by a professional is eligible for state aid designed to encourage households to replace their old heating systems that rely on fossil fuels with systems that use renewable resources. These include MaPrimeRenov', the CEE scheme, the zero-rate eco-loan, etc.
